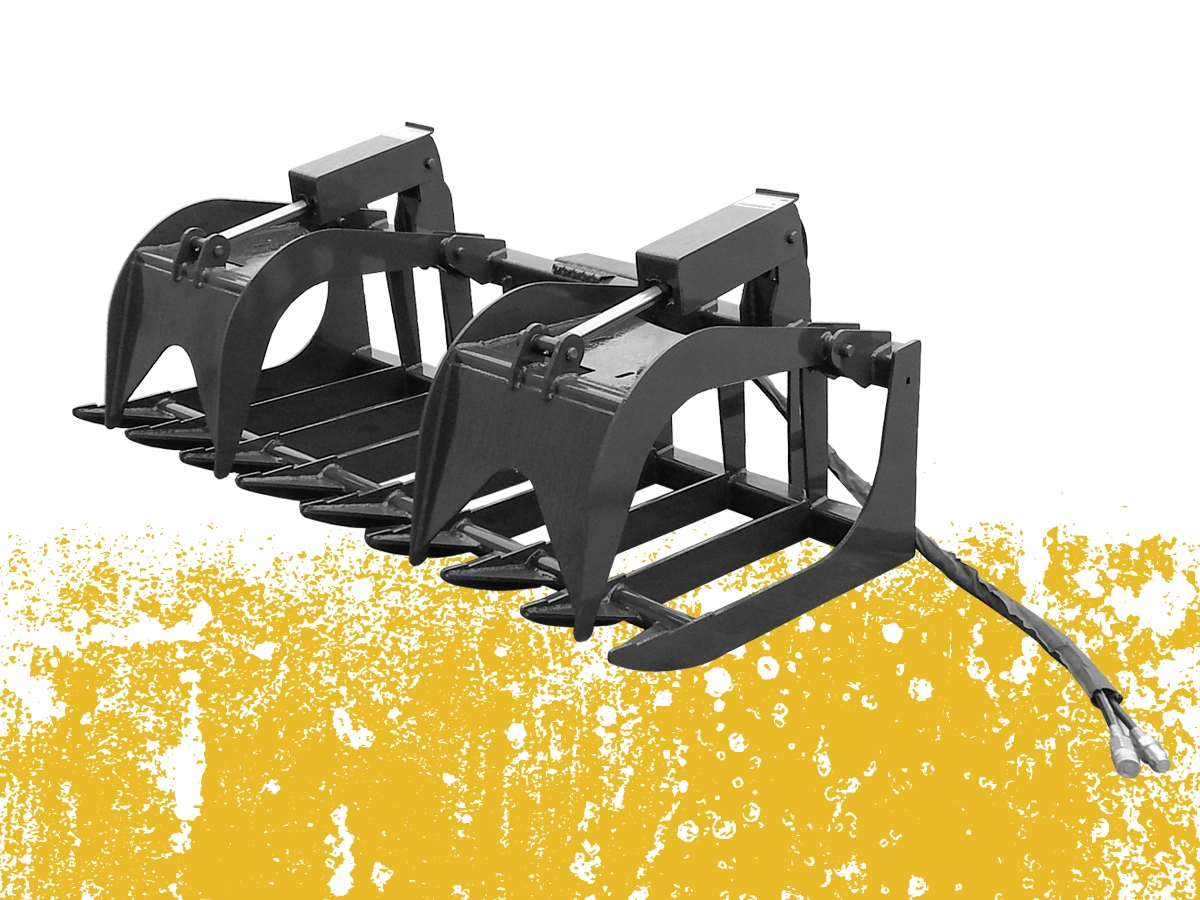

Standard Duty Root Grapple

No matter if you’re moving logs, brush, rocks or a wide assortment of materials, our Standard Duty Root Grapple skid loader attachment is built tough with a 3/8″ thick steel plate on the top and bottom. While the 2″ bore by 10″ stroke cylinders operate independently to adjust for uneven loads, cylinder rod covers are available to further protect the cylinder shafts. Hydraulic lines are also protected inside the 3″ square tubing to prevent tears.

Specifications
  • 3/8″ Thick Steel
  • 2″ Bore by 10″ Stroke Cylinder
  • Grease Fittings at Every Pivot Point
  • Hydraulic Lines Routed Inside Tubing
  • Powder-coated Finish
  • Protective Sleeve on Hydraulic Hoses
  • John Deere and Euro Mounts Available
  • Optional: Spacer Tines
  • Optional: Bolt-on Cylinder Rod Covers
Requirement

Rated for machines 35-45HP and under

Warranty

Lackender by ECS products are covered by a limited manufacturer’s warranty and are warranted to be free from defects in workmanship or materials for a period of 12 months from initial sale.

Weight N/A
Dimensions N/A
Size

63", 66", 72"
